Donjin Keygoe IP Phones

Donjin Keygoe series IP Phones are designed specifically for executives, managers and knowledge workers in small businesses and medium-sized organizations delivering HD Voice technology and a wide range of business telephony features. They are audioconference-enabled, come with HD voice, and provide lifelike unified communications. With Donjin Keygoe Deployed IP Phone Tool, they are easy to deploy and manage, so administrators can easily provision and maintain handsets throughout the enterprise.


    Donjin Keygoe Deployed IP Phone Tool(KDT) provides administrators with powerful and easy-to-use software to simplify deployment such as remote provisioning, local provisioning, visualization editing of configuration file, batching of configuration file, phone sets discovery,  PNP and upgrades of firmware, troubleshooting and monitoring to increase efficiency and lower IT expenses.


    Model

    Keygoe IP601

    Keygoe IP802

    Keygoe IP803

    Keygoe IP840

    Keygoe IP860

    LCD   display

    132*48

    128*40

    192*64

    480*320, 3.5''

    480*320, 3.5''

    Backlight

    Y

    N

    Y

    Y

    Y

    Color

    Monochrome

    Monochrome

    Monochrome

    Color

    Color

    Sip   account number

    2

    2

    2

    3

    4

    Line   key

    2

    2

    2

    4

    4

    Functional   keys

    6

    3

    3

    9

    9

    Soft   keys

    4

    4

    4

    4

    4

    Navigation   keys

    6

    6

    6

    6

    6

    Paperless   function key

    0

    0

    0

    12

    4

    Memory   key

    0

    5

    5

    0

    10

    Support   extended board

    N

    N

    N

    Y

    Y

    Support   EHS

    N

    N

    N

    Y

    Y

    Hanging   wall

    Y

    Y

    Y

    N

    N

    network   interface

    Dual-port   10/100M Ethernet

    PoE   function

    Y

    HD   speech

    HD Codec, HD   Handset, HD Hands-free

    Meeting

    Five Party   Conference

    Wideband   coding

    G.722

    Narrowband   coding

    G.711(A/μ)law, Ilbc,   GSM_FM, G.723.1, G.726-32, G.729AB

    language

    Multilingual Globally

    Telephone   book

    100 Contacts   Saved,XML   Phone Book,LDAP   Phone Book

    Basic   call function

    Redial, Dial   Back, Call Transfer, Call Retention, Call Hold, Mute, Conference

    Advanced   call function

    BLF, BLF List,   Line Sharing,Intercom,   Broadcast, Call Reservation, Voicemail, Speed-dial

    Automatic   configuration

    TFTP/FTP/HTTP/   HTTPS /PNP TR069

    Network   security & QoS

    SRTP, TLS,   HTTPS, 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP, OpenVPN, IEEE802.1X


     Entry-level IP Phone IP601





           Phone Features

    • 2 SIP accounts

    • Call hold, mute, DND

    • One-touch speed dial, hotline

    • Call forward, call waiting, call transfer

    • Redial, call return, auto answer, direct IP call

    • 5-way conferencing

    • Group listening, SMS, emergency call

    • Ring tone selection/provisioning

    • Set date time automatically or manually

    • Dial plan per account

    • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

    • Action URL/URI



      Voice Codecs Features

    • HD voice: HD handset, HD speaker

    • Codecs: iLBC, G.722, G.711(A/μ),

    • GSM_FR, G.723, G.729AB, G.726-32

    • DTMF: In-band, RFC 2833, SIP INFO

    • Full-duplex hands-free speakerphone with AEC

    • VAD, AGC, CNG, AEC, PLC, AJB



      Directory

    • Local phonebook up to 1000 entries

    • XML/LDAP remote phonebook

    • Intelligent search method

    • Phonebook search/import/export

    • Call history: dialed/received/missed/forwarded

    • Black list



      IP-PBX Features

    • Busy Lamp Field (BLF), bridged Line Appearance(BLA)

    • Anonymous call, anonymous call rejection

    • Message Waiting Indicator (MWI) , voice mail

    • Intercom, paging

    • Call park, call pickup

    • Music on hold

    • Hot-desking



      Display and Indicator

    • 132x48 pixel graphical LCD with backlight

    • LED for call and message waiting indication

    • Illuminated LEDs for line status information

    • Intuitive user interface with icons and soft keys

    • National language selection

    • Caller ID with name, number



      Feature keys

    • 2 line keys with LED

    • 6 features keys: mute, headset, message, transfer, redial, speaker

    • 4 context-sensitive “soft” keys

    • 6 navigation keys

    • Volume control keys



      Interface

    • Dual-port 10/100M Ethernet

    • Power over Ethernet (IEEE 802.3af), class 2

    • 1xRJ9 (4P4C) handset port

    • 1xRJ9 (4P4C) headset port



      Physical Features

    • Stand with 2 adjustable angles

    • Wall mountable

    • AC adapter : 100~240V input and DC 5V/1.2A output

    • Power consumption (PSU): 1.6~2.6W

    • Power consumption (PoE): 2.0~3.2W

    • Operating humidity: 10~95%

    • Operating temperature: -10~50°C



      Management

    • Configuration: browser/LCD-Menu/auto-provision

    • Auto provision via HTTP/HTTPS FTP/TFTP

    • Auto-provision with PnP

    • Reset to factory, restart, reboot

    • Local tracing log export, system log

    • Phone lock for personal privacy protection



      Network and Security

    • SIP v1 (RFC2543), v2 (RFC3261)

    • SIP server/proxy redundancy

    • NAT Traversal: STUN mode

    • DHCP/static/PPPoE/IEEE802.1X/open VPN

    • HTTP/HTTPS web server

    • Time and date synchronization by SNTP

    • DNS-NAPTR/DNS-SRV(RFC 3263)

    • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP

    • TLS(Transport Layer Security), SRTP

    • HTTPS certificate manager

    • AES encryption for configuration file

    • Digest authentication using MD5/MD5-sess



    HD Entry-Level IP Phone IP802

    HD Entry-Level IP Phone IP802.jpg

            Physical feature

    • 128*40 graphic LCD

    • Ethernet: 2 RJ45 (1 Internet+1 PC)

    • 2 line keys, 3 feature keys, 4 softkeys,

    • 6 navigation keys , 5 memory keys

    • Handset: 1 RJ9(4P4C)

    • Headset: 1 RJ9(4P4C)

    • Power adapter: 5V/1.2A

    • Power over Ethernet(PoE): IEEE 802.3a

    • Power consumption approx: 1.7-2.0Wf



      Management

    • Auto-provision via FTP/TFTP/HTTP/HTTPS

    • Auto-provision with PnP

    • SNMP V1/2 optional, TR069 optional

    • Configuration: browser/phone/auto-provision

    • Factory configuration customized

    • Trace package and system log export



      Voice codes

    • HD wideband codec:

    • G.722. HD Codec, HD speaker, HD handset

    • Full-duplex speakerphone with AEC

    • G.711u/a-law, iLBC, G.723.1, G.726, G.729A/B.

    • DTMF(In-Band, RFC2833, SIP Info)

    • VAD, CNG, AEC, PLC, AJB, AGC



      Security

    • Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP

    • Transport Layer Security (TLS)

    • HTTPS (server/client), SRTP (RFC3711),ZRTP(RFC6189)

    • Digest authentication using MD5/MD5-sess

    • Secure configuration file via AES encryption

    • Phone lock for personal privacy protection

    • Admin/VAR/User 3-level configuration mode



      General feature

    • Operating humidity: 10~95%

    • Operating temperature: -10~50°C

    • Qty/CTN: 10 PCS

    • N.W/CTN: 11.5KG

    • G.W/CTN: 12.5 KG

    • Carton Meas: 530MM*500MM*225MM



      Telephone interface

    • 2 SIP Accounts

    • Menu-driven user interface, XML Idle Screen, Theme,

    • Integrated Screenshots

    • Screen Sleep

    • Call hold, Call waiting, Call forward, Call return,

    • Redial,Call transfer

    • Caller ID display, DND, Auto-answer, 5-Way Conference

    • Mute, Speed dial, SMS, Voicemail, Message Waiting

    • Indication (MWI) LED, Call history

    • BLF/BLA

    • Tone scheme, Volume control

    • Ring tone selection/Import/Delete

    • Broad and Deep Interoperability

    • Soft keys programmable

    • Phonebook, Black list XML/LDAP phonebook(1000 enties)

    • XML phonebook search/import

    • LDAP phonebook

    • Basic Hot-desking

    • Action URL & Active URI

    • Wallpaper, Screensaver

      Based IP PBX system:

    • Busy lamp field (BLF), BLF list, (BLA)

    • DND & Forward synchronization

    • Intercom, Paging

    • Call park, Call pickup

    • Call recording, Call completion

    • Group listening, Group pickup

    • Anonymous call, Anonymous call rejection

    • Network conference

    • Distinctive ringtone

    • Dial Plan, Dial-now



      Network protocol

    • TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP

    • Static/DHCP/PPPoE

    • TFTP/DHCP/PPPoE client

    • HTTP/HTTPS server

    • IPv6, Bridge/router mode for PC port

    • SIP v1 (RFC2543), v2 (RFC3261),

    • SDP(RFC 2327), RTP(RFC 1889,1890),

    • RTCP, RTCP-XR, RFC 2833 X-NSE Tone

    • Events for SIP/RTP, AVT Tone Events for SIP/RTP

    • DNS SRV (RFC3263),Redundant server support



      Certificates

    • CE FCC RoHS…

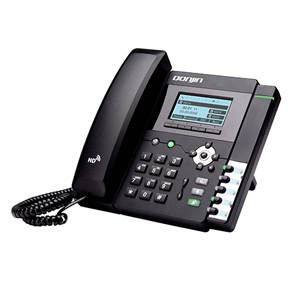

    Cost-effective IP Phone / HD IP Phone  IP803




           Physical feature

    • 192*64 graphic LCD with backlit

    • Ethernet: 2 RJ45 (1 Internet+1 PC)

    • 2 line keys, 3 feature keys, 4 softkeys,

    • 6 navigation keys , 5 memory keys

    • Handset: 1 RJ9(4P4C)

    • Headset: 1 RJ9(4P4C)

    • Power adapter: 5V/1.2A

    • Power over Ethernet(PoE): IEEE 802.3af

    • Power consumption approx: 1.7-2.2W



      Management

    • Auto-provision via FTP/TFTP/HTTP/HTTPS

    • Auto-provision with PnP

    • SNMP V1/2 optional, TR069 optional

    • Configuration: browser/phone/auto-provision

    • Factory configuration customized

    • Trace package and system log export



      Voice codes

    • HD wideband codec:

    • G.722. HD Codec, HD speaker, HD handset

    • Full-duplex speakerphone with AEC

    • G.711u/a-law, iLBC, G.723.1, G.726, G.729A/B.

    • DTMF(In-Band, RFC2833, SIP Info)

    • VAD, CNG, AEC, PLC, AJB, AGC



      Security

    • Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP

    • Transport Layer Security (TLS)

    • HTTPS (server/client), SRTP (RFC3711),ZRTP(RFC6189)

    • Digest authentication using MD5/MD5-sess

    • Secure configuration file via AES encryption

    • Phone lock for personal privacy protection

    • Admin/VAR/User 3-level configuration mode



      General feature

    • Operating humidity: 10~95%

    • Operating temperature: -10~50°C

    • Qty/CTN: 10 PCS

    • N.W/CTN: 11.5 KG

    • G.W/CTN: 12.5 KG

    • Carton Meas: 530MMx500MMx225MM



      Telephone interface

    • 2 SIP Accounts

    • Menu-driven user interface, XML Idle Screen, Theme,

    • Integrated Screenshots

    • Screen Sleep

    • Call hold, Call waiting, Call forward, Call return,

    • Redial,Call transfer

    • Caller ID display, DND, Auto-answer, 5-Way Conference

    • Mute, Speed dial, SMS, Voicemail, Message Waiting

    • Indication (MWI) LED, Call history

    • BLF/BLA

    • Tone scheme, Volume control

    • Ring tone selection/Import/Delete

    • Broad and Deep Interoperability

    • Soft keys programmable

    • Phonebook, Black list XML/LDAP phonebook(1000 enties)

    • XML phonebook search/import

    • LDAP phonebook

    • Basic Hot-desking

    • XML Browser, XML Idle Screen

    • Action URL & Active URI

    • Wallpaper, Screensaver

      Based IP PBX system:

    • Busy lamp field (BLF), BLF list, (BLA)

    • DND & Forward synchronization

    • Intercom, Paging

    • Call park, Call pickup

    • Call recording, Call completion

    • Group listening, Group pickup

    • Anonymous call, Anonymous call rejection

    • Network conference

    • Distinctive ringtone

    • Dial Plan, Dial-now



      Network protocol

    • TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP

    • Static/DHCP/PPPoE

    • TFTP/DHCP/PPPoE client

    • HTTP/HTTPS server

    • IPv6, Bridge/router mode for PC port

    • SIP v1 (RFC2543), v2 (RFC3261),

    • SDP(RFC 2327), RTP(RFC 1889,1890),

    • RTCP, RTCP-XR, RFC 2833 X-NSE Tone

    • Events for SIP/RTP, AVT Tone Events for SIP/RTP

    • DNS SRV (RFC3263),Redundant server support



      Certificates

    • CE FCC RoHS…



    Cost-effective IP Phone / Color IP Phone  IP840




           Physical feature

    • 3.5”TFT-LCD, 480 x 320 pixel, 262K colors

    • Ethernet: 2 RJ45 (1 Internet+1 PC)

    • 4 line keys, 9 feature keys, 4 softkeys,

    • 6 navigation keys, 12 paperless DSS keys

    • Handset: 1 RJ9(4P4C)

    • Headset: 1 RJ9(4P4C)

    • Power adapter: 5V/1.2A

    • Power over Ethernet(PoE): IEEE 802.3af

    • RJ12 EXT Port

    • Power consumption approx: 2.2-2.8W



      Management

    • Auto-provision via FTP/TFTP/HTTP/HTTPS

    • Auto-provision with PnP

    • SNMP V1/2 optional, TR069 optional

    • Configuration: browser/phone/auto-provision

    • Factory configuration customized

    • Trace package and system log export



      Voice codes

    • HD wideband codec:

    • G.722. HD Codec, HD speaker, HD handset

    • Full-duplex speakerphone with AEC

    • G.711u/a-law, iLBC, G.723.1, G.726, G.729A/B.

    • DTMF(In-Band, RFC2833, SIP Info)

    • VAD, CNG, AEC, PLC, AJB, AGC



      Security

    • Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP

    • Transport Layer Security (TLS)

    • HTTPS (server/client), SRTP (RFC3711),ZRTP(RFC6189)

    • Digest authentication using MD5/MD5-sess

    • Secure configuration file via AES encryption

    • Phone lock for personal privacy protection

    • Admin/VAR/User 3-level configuration mode



      General feature

    • Operating humidity: 10~95%

    • Operating temperature: -10~50°C

    • Qty/CTN: 10 PCS

    • N.W/CTN: 13.12 KG

    • G.W/CTN: 14.12 KG

    • Carton Meas: 630MMx500MMx225MM



      Telephone interface

    • 3 SIP Accounts

    • Menu-driven user interface, XML Idle Screen, Theme,

    • Integrated Screenshots

    • Screen Sleep

    • Call hold, Call waiting, Call forward, Call return,

    • Redial,Call transfer

    • Caller ID display, DND, Auto-answer, 5-Way Conference

    • Mute, Speed dial, SMS, Voicemail, Message Waiting

    • Indication (MWI) LED, Call history

    • BLF/BLA,Paper label free design

    • Tone scheme, Volume control

    • Ring tone selection/Import/Delete

    • Broad and Deep Interoperability

    • Soft keys programmable

    • Phonebook, Black list XML/LDAP phonebook(1000 enties)

    • XML phonebook search/import

    • LDAP phonebook

    • Basic Hot-desking

    • XML Browser, XML Idle Screen

    • Action URL & Active URI

    • Wallpaper, Screensaver

    • Supports up to 6 expansion modules(UC46)

    • Supports Wireless Headset Adapter(EHS30)

      Based IP PBX system:

    • Busy lamp field (BLF), BLF list, (BLA)

    • DND & Forward synchronization

    • Intercom, Paging

    • Call park, Call pickup

    • Call recording, Call completion

    • Group listening, Group pickup

    • Anonymous call, Anonymous call rejection

    • Network conference

    • Distinctive ringtone

    • Dial Plan, Dial-now



      Network protocol

    • TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP

    • Static/DHCP/PPPoE

    • TFTP/DHCP/PPPoE client

    • HTTP/HTTPS server

    • IPv6, Bridge/router mode for PC port

    • SIP v1 (RFC2543), v2 (RFC3261),

    • SDP(RFC 2327), RTP(RFC 1889,1890),

    • RTCP, RTCP-XR, RFC 2833 X-NSE Tone

    • Events for SIP/RTP, AVT Tone Events for SIP/RTP

    • DNS SRV (RFC3263),Redundant server support



      Certificates

    • CE FCC RoHS…



     Enterprise IP Phone \ Color IP Phone IP860





            Physical feature

    • 3.5”TFT-LCD, 480 x 320 pixel, 262K colors

    • Ethernet: 2 RJ45 (1 Internet+1 PC)

    • 4 line keys, 9 feature keys, 4 softkeys,

    • 6 navigation keys, 4 paperless DSS keys, 10 memory keys

    • Handset: 1 RJ9(4P4C)

    • Headset: 1 RJ9(4P4C)

    • Power adapter: 5V/1.2A

    • Power over Ethernet(PoE): IEEE 802.3af

    • RJ12 EXT Port

    • Power consumption approx: 1.8-2.4W



      Management

    • Auto-provision via FTP/TFTP/HTTP/HTTPS

    • Auto-provision with PnP

    • SNMP V1/2 optional, TR069 optional

    • Configuration: browser/phone/auto-provision

    • Factory configuration customized

    • Trace package and system log export



      Voice codes

    • HD wideband codec:

    • G.722. HD Codec, HD speaker, HD handset

    • Full-duplex speakerphone with AEC

    • G.711u/a-law, iLBC, G.723.1, G.726, G.729A/B.

    • DTMF(In-Band, RFC2833, SIP Info)

    • VAD, CNG, AEC, PLC, AJB, AGC



      Security

    • Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP

    • Transport Layer Security (TLS)

    • HTTPS (server/client), SRTP (RFC3711),ZRTP(RFC6189)

    • Digest authentication using MD5/MD5-sess

    • Secure configuration file via AES encryption

    • Phone lock for personal privacy protection

    • Admin/VAR/User 3-level configuration mode



      General feature

    • Operating humidity: 10~95%

    • Operating temperature: -10~50°C

    • Qty/CTN: 6 PCS

    • N.W/CTN: 9.5 KG

    • G.W/CTN: 10.5 KG

    • Carton Meas: 595MMx375MMx225MM



      Telephone interface

    • 4 SIP Accounts

    • Menu-driven user interface, XML Idle Screen, Theme,

    • Integrated Screenshots

    • Screen Sleep

    • Call hold, Call waiting, Call forward, Call return,

    • Redial,Call transfer

    • Caller ID display, DND, Auto-answer, 5-Way Conference

    • Mute, Speed dial, SMS, Voicemail, Message Waiting

    • Indication (MWI) LED, Call history

    • BLF/BLA

    • Tone scheme, Volume control

    • Ring tone selection/Import/Delete

    • Broad and Deep Interoperability

    • Soft keys programmable

    • Phonebook, Black list XML/LDAP phonebook(1000 enties)

    • XML phonebook search/import

    • LDAP phonebook

      Basic Hot-desking

    • XML Browser, XML Idle Screen

    • Action URL & Active URI

    • Wallpaper, Screensaver

    • Supports up to 6 expansion modules(UC46)

    • Supports Wireless Headset Adapter(EHS30)

    • Based IP PBX system:

    • Busy lamp field (BLF), BLF list, (BLA)

    • DND & Forward synchronization

    • Intercom, Paging

    • Call park, Call pickup

    • Call recording, Call completion

    • Group listening, Group pickup

    • Anonymous call, Anonymous call rejection

    • Network conference

    • Distinctive ringtone

    • Dial Plan, Dial-now



      Network protocol

    • TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP

    • Static/DHCP/PPPoE

    • TFTP/DHCP/PPPoE client

    • HTTP/HTTPS server

    • IPv6, Bridge/router mode for PC port

    • SIP v1 (RFC2543), v2 (RFC3261),

    • SDP(RFC 2327), RTP(RFC 1889,1890),

    • RTCP, RTCP-XR, RFC 2833 X-NSE Tone

    • Events for SIP/RTP, AVT Tone Events for SIP/RTP

    • DNS SRV (RFC3263),Redundant server support



      Certificates

    • CE FCC RoHS…

Related Solutions
Contact purchase

                +86 755 8363 6988 ext 6331



Technical support

                7 X 24 Telephone Service Hotline

                +86 755 8363 6988 ext 6331
